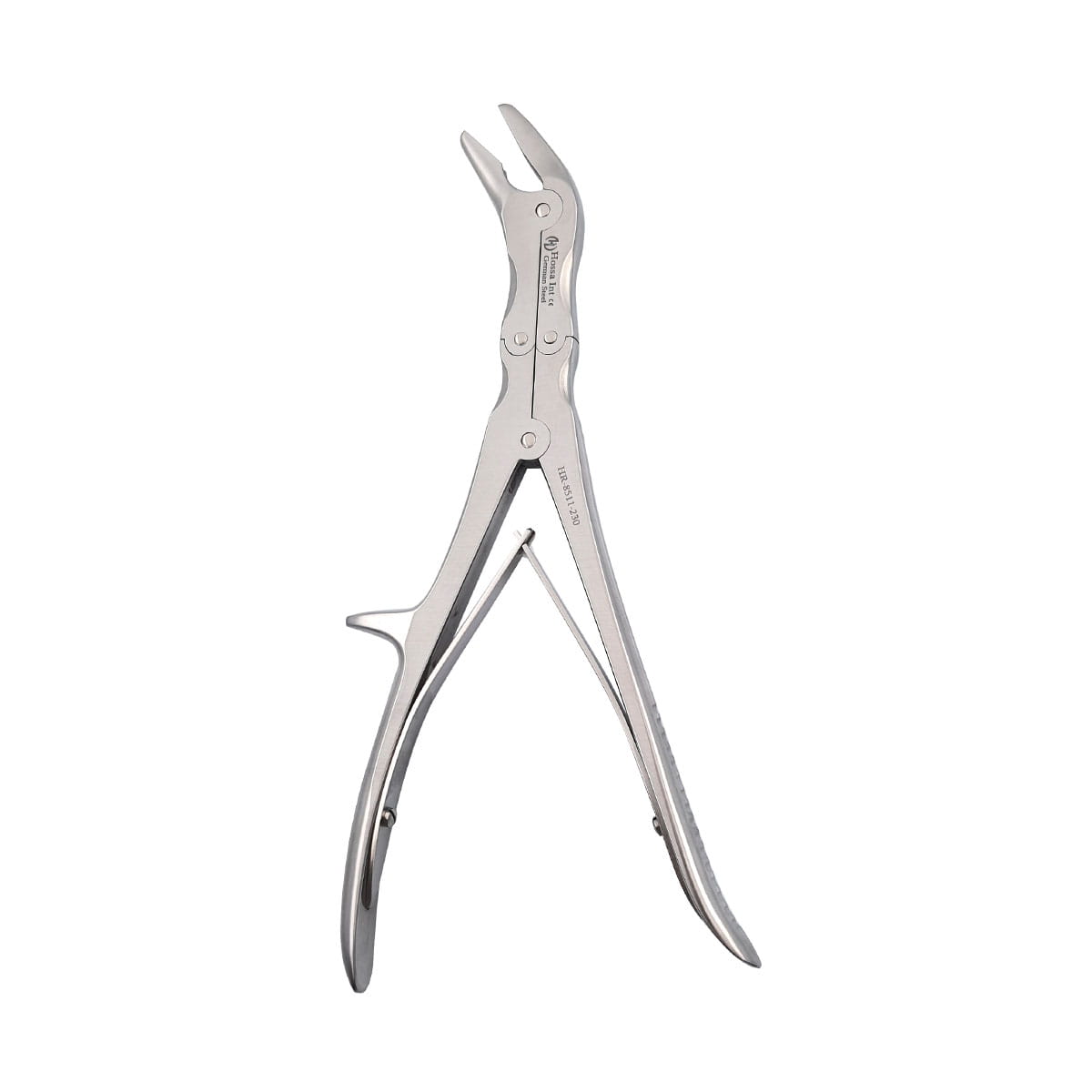

Echlin Bone Biter 23 cm

The Echlin bone biter, 23 cm long,  is a surgical instrument dedicated to neurosurgical procedures, such as laminectomy. The working part of the tool consists of beaks that have been specially curved at an angle of approx. 45 ° . The purpose of the tool is to remove fragments of bone tissue. On the inside of the jaws there are grooves in the shape of elongated spoons, gutters. During the clamping, they touch each other with sharpened edges, allowing precise removal of small fragments of bone or intervertebral disc. The tool uses a spring mechanism and a gear that allows smooth opening and closing of the jaws. The handle is shaped like a pair of pliers. Additionally, the Echlin bone biter is equipped with a limiter located on the left arm of the handle, which prevents the tool from slipping out of the hand. The arms of the tool perfectly adhere to the curves of the hand during clamping.

Technical data:

• Total length: 23 cm
• Length of working tips (gutters): 20 mm
• Tip type: bent beaks at an angle of approx. 45 °,  with internal grooves, sharp, cutting edges
• Gutter depth: 3 mm
• Type of mechanism: double spring ratchet and gear
• Handle type: non-slip, pincer-style construction, arms bent to the right, deep grooves on the handles, hand rest
• Reusable, non-sterile product
• Warranty: 24 months

Advantages of the Echlin 23 cm Bone Biter:

• Neurosurgical procedures are comfortable to perform with the Echlin curved biter, thanks to the length of the instrument – up to 23 cm
• The use of sharp edges of the grooves in the jaws allows for precise smoothing of the bones.
• The rounded outer part of the instrument in the working part perfectly protects against accidental damage to adjacent tissues
• The gearing of the bone biter, located in the upper part of the arms, greatly assists in applying pressure to the part of the bone to be removed and stabilizes the cutting elements in the right position.
• The arms of the handle are bent in an arc to the right, so the tool fits perfectly in the hand
• The handles have an ergonomic design, a non-slip surface and a hand lock, which ensures safe use when wearing protective gloves and in wet conditions.
• The bite remover is made of high-quality German surgical steel, which guarantees long service life despite sterilization and disinfection.
• Professional matting of steel prevents light reflections

Product certified in the EU and worldwide: CE, ISO 9001:2015. Meets all requirements for sterilization procedures according to the regulations of medical offices and facilities. Sterilization in an autoclave up to 134°. Reusable product, requires sterilization before use. The product is accompanied by an instruction manual in Polish and English, which will ensure correct use and better maintenance of the instrument.
